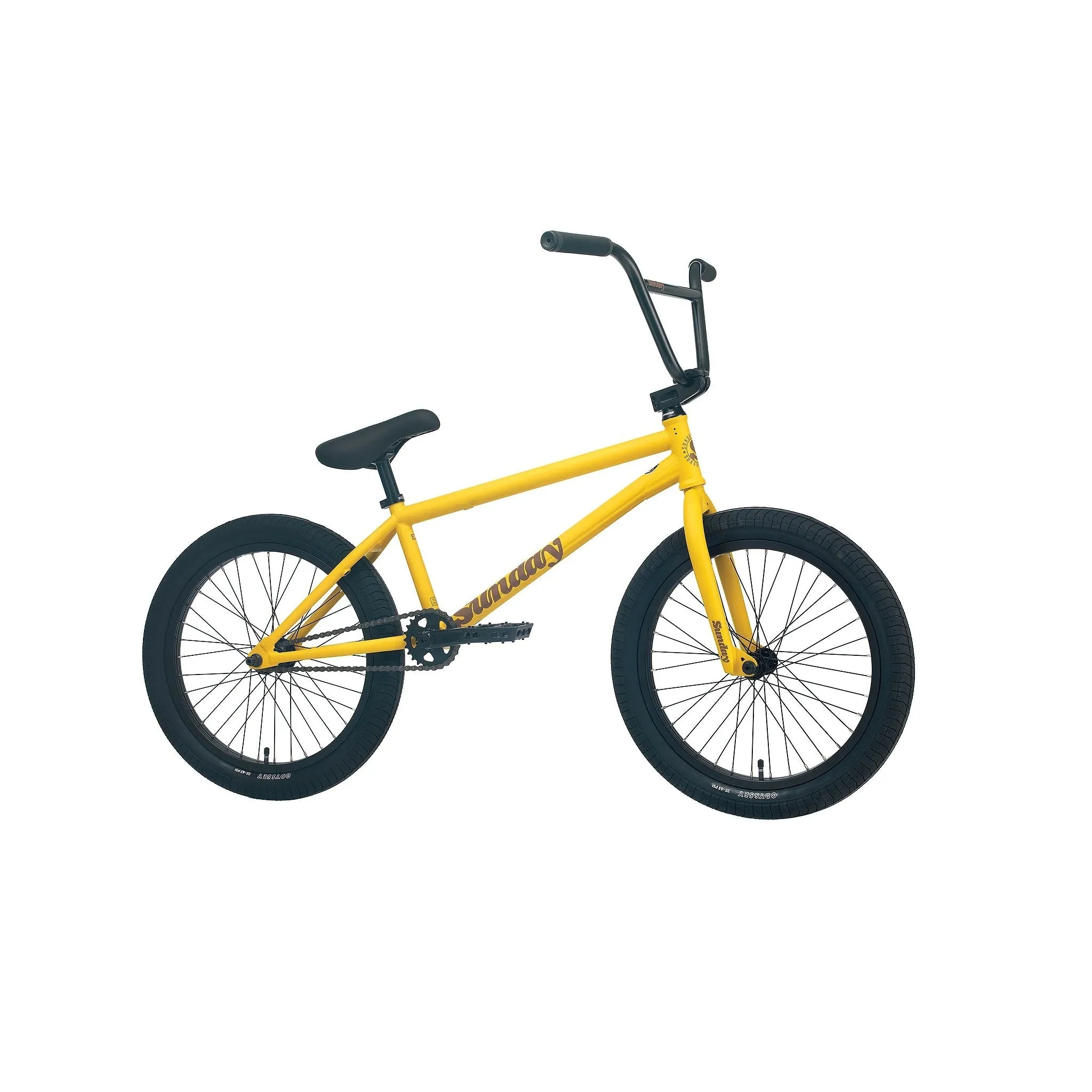

With a 100% chromoly frame, fork, and bars, the 2022 EX is a bike that is difficult to match.

Julian Arteaga's signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business.

Key Features

• 100% Chromoly Frame, Fork, and 4-piece Bars
• Sunday Signature Wave Down Tube
• Odyssey Broc Raiford Grips
• FSA Conical Headset
• Sunday Sabretooth v2 25t Sprocket
• Sunday Saker 3-PC Cranks, 165mm
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey C5 Sealed Cassette Hub
• Sealed Front Hub

Specifications

• Frame: 21" top tube, 100% chromoly frame with wave downtube, removable brake hardware
• Fork: Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
• Handlebar: Sunday, 100% chromoly, 2-piece
• Stem: Sunday Freeze front load, 48mm
• Headset: FSA integrated conical, 1-1/8"
• Alloy Cap: Sunday M16, aluminum
• Brake Lever: Odyssey Springfield
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic
• Grips: Odyssey Broc Raiford
• Seat: Sunday Badge, Pivotal
• Seat post: Sunday Pivotal
• Seat Clamp: Sunday
• Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
• Cranks: Sunday Saker, 165mm
• BB Parts: Sealed, Mid, 19mm
• Pedals: Odyssey Twisted PC Pro
• Rims: Sunday Lightning, 20", 36H
• Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle
• Rear Hub: Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
• Spokes: 14g steel, black
• Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
• Chain: KMC Z1 wide
• Approx. Weight: 25.75lbs (with brakes)

Frame Geometry

• Top Tube Length: 21"
• Head Tube Angle: 75°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.5"
• Standover: 9"

Handlebar Geometry

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
